Delta RPI M6A
Delta RPI M6A
In Stock
Model name: M6A
Part number Delta: RPI602FA0E100
Maximum profitability
The M6A solar inverter features a 6 kVA power output. This new three-phase transformerless solar inverter is designed for residential or small commercial PV applications where maximum versatility and profitability are important. Thanks to the high maximum efficiency up to 98.3 %, optimum yield from the PV plant is ensured from the device.
Wireless communication

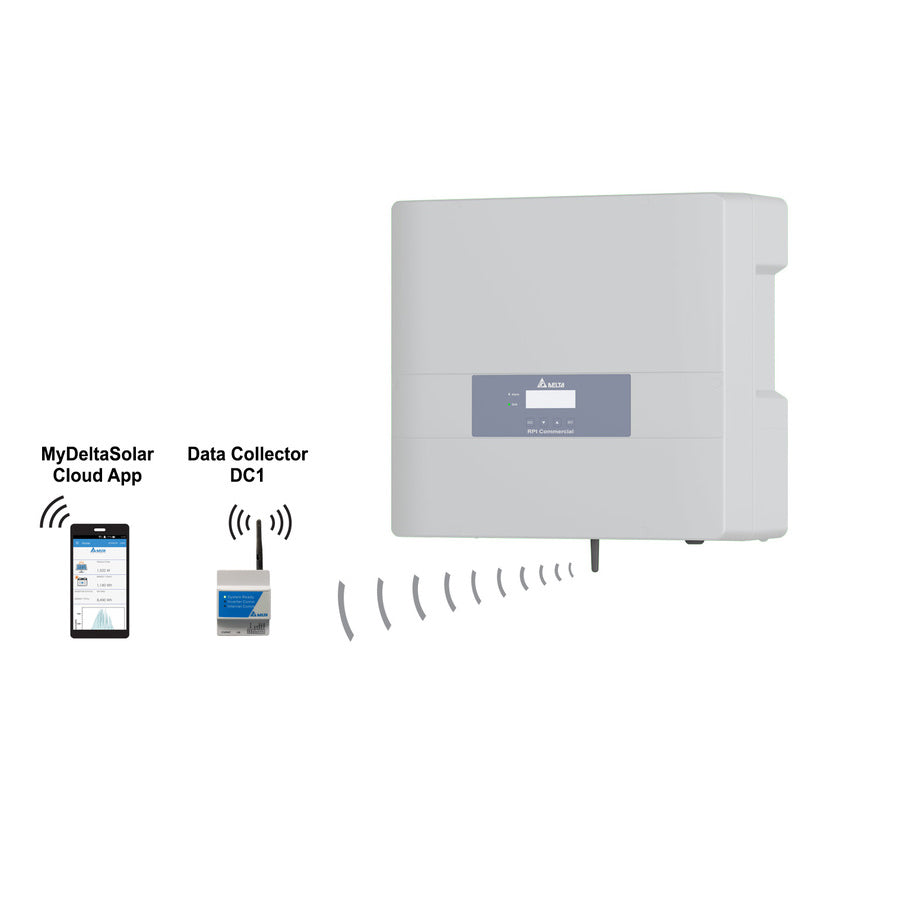

Built-in Wi-Fi communication allows the user to commission and view the status of the inverter via the MyDeltaSolar app on a mobile device. The app is available for iOS and Android. The inverter can also be used with the DC1 Data Collector via Wi-Fi or RS-485. The DC1 is required for the setup of a user's PV plant on the MyDelta Solar Cloud monitoring system.
Flexible system design
For the system planner, maximum flexibility is ensured thanks to a wide input voltage range of 200 – 1000 V and 2 MPP trackers. The new unit is compatible with major types of PV modules and the robust IP65 rated enclosure allows outdoor Installation.
Simple installation

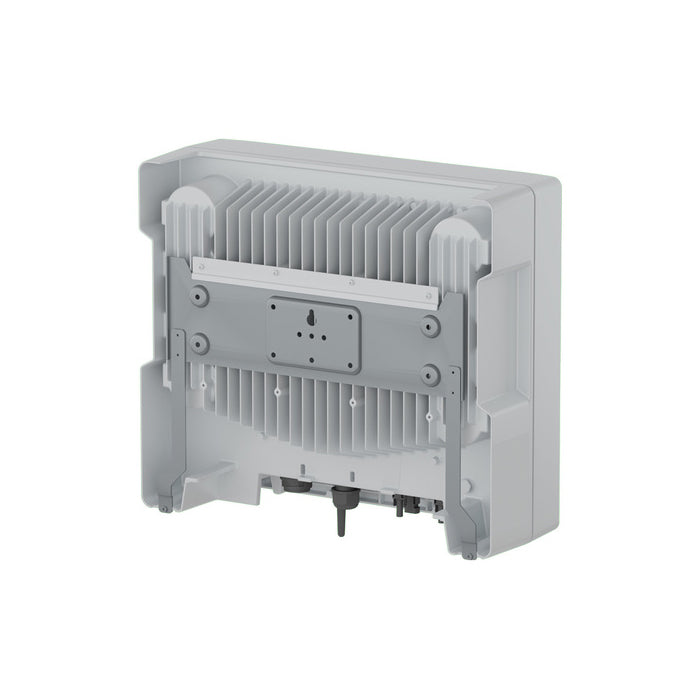

The lightweight and compact design of the M6A greatly simplifies installation. The inverter includes a unique wall mount bracket in the scope of delivery, allowing the unit to be easily installed on a variety of wall surfaces.
Intelligent cooling design

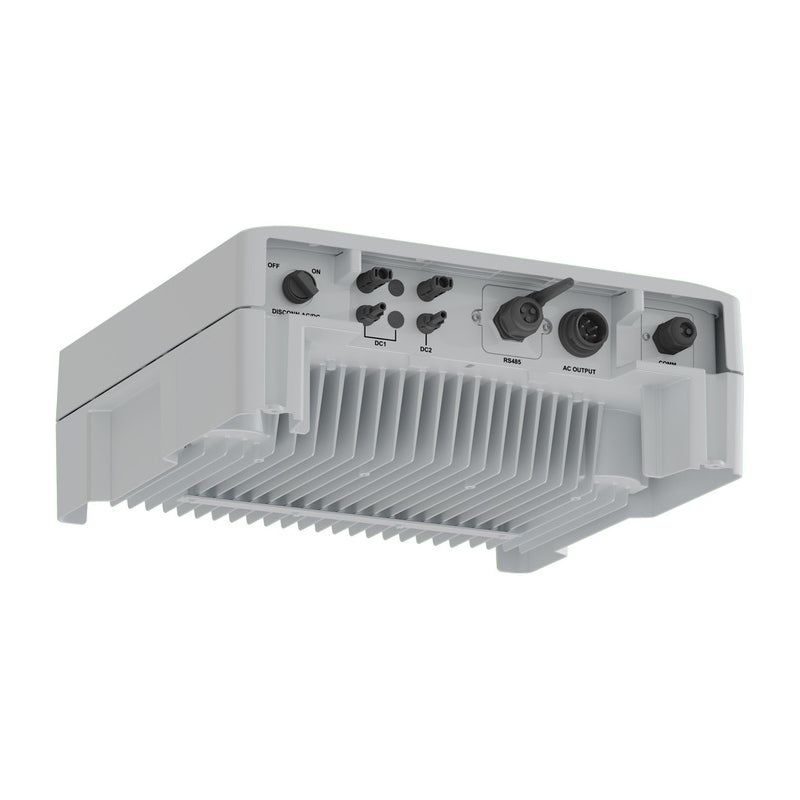

The inverter uses an innovative heatsink design for cooling which draws the heat away from the inverter through a natural convection process. Because there are no fans required, maintenance costs are reduced and audible noise is greatly reduced. Additionally, the intelligent cooling design extends the life of electronic components and increases the life of the solar Inverter.
