Delta RPI M30A_120

  • €2.309,00
    Unit price per


Delta RPI M30A_120

In Stock

Maximum profitability and versatility

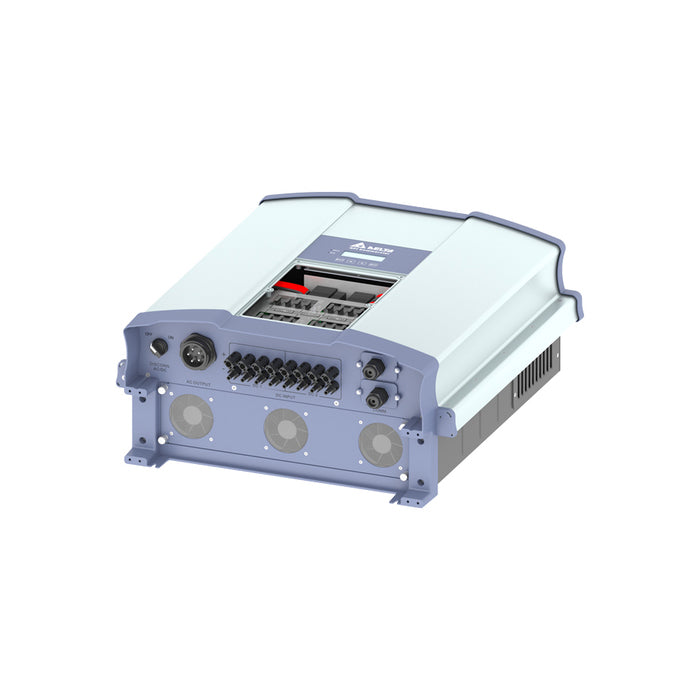

The compact M30A transformerless three-phase inverter features a nominal 30 kVA output but enables maximum power output up to 33 kVA. This feature allows the inverter to provide 10 % more power and higher yields when compared to other 30 kVA inverters on the market. The inverter features an excellent power density-to-size ratio and very high max. efficiency of 98.5 %.

Flexible system design

For the system planner, maximum flexibility is ensured thanks to a wide input voltage range of 200 - 1000 V and 2 MPP trackers. The M30A supports symmetrical and asymmetrical loading (33/67 %). The unit is compatible with major types of PV modules and the robust IP65 rated enclosure allows outdoor installation.

Simple installation

The lightweight and compact design of the M30A greatly simplifies installation. The inverter includes a unique wall mount bracket in the scope of delivery, allowing the unit to be easily installed on a variety of wall surfaces.

Datasheet Download PDF

Quick Installation Guide Download PDF

Warranty Download PDF
