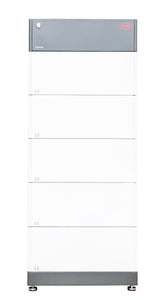

BYD Battery-Box Premium HVM 13.8
BYD Battery-Box Premium HVM 13.8
- Battery Module: HVM (2.76 kWh, 51.2 V, 38 kg)
- Number of Modules: 5
- Usable Energy [1]: 13.80 kWh
- Max Output Current [2]: 50 A
- Peak Output Current [2]: 75 A, 5 s
- Nominal Voltage: 256 V
- Operating Voltage: 200~300 V
- Dimensions (H/W/D): 1411 x 585 x 298 mm
- Weight: 205 kg
BYD BATTERY-BOX PREMIUM HVM
One Battery-Box Premium HVM is composed of 3 to 8 HVM battery modules that are connected in series to achieve a usable capacity of 8.3 to 22.1 kWh. Additionally, direct parallel connection of up to 3 identical Battery-Box Premium HVM allows a maximum capacity of 66.2 kWh.Ability to scale by adding HVM modules or parallel HVM stacks later.
